SILICON VALLEY COMPUTER, INC. ADP65
| Data bus: | 16-bit, ISA |
| Size: | Half-length, full-height card |
| Hard drives supported: | Up to four IDE (AT) Interface drives or up to two IDE tape drives |
| Floppy drives supported: | Up to four 360KB, 720KB, 1.2MB, or 1.44MB |

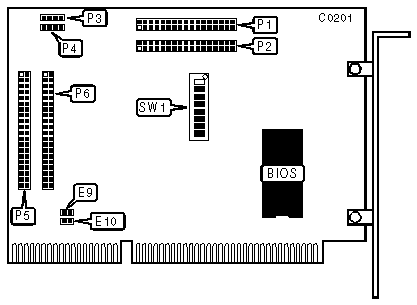

| CONNECTIONS |
| Function | Location |
| 34-pin control cable connector-floppy drives 0 and 1 | P1 |
| 34-pin control cable connector-floppy drives 2 and 3 | P2 |
| 4-pin connector-Drive active LED for P5 | P3 |
| 4-pin connector-Drive active LED for P6 | P4 |
| 40-pin IDE (AT) Interface connector (Drives 0 and 1) | P5 |
| 40-pin IDE (AT) Interface connector (Drives 2 and 3) | P6 |
| Note: Connector P5 only supports hard drives, any tape drives must be chained from P6. |
| USER CONFIGURABLE SETTINGS |
| Function | Location | Setting |
| » | Reserved for ROM Size, must be left as shipped | SW1/switch 7 | off |
| » | Floppy drive enabled | SW1/switch 8 | on |
| | Floppy drive disabled | SW1/switch 8 | off |
| » | IRQ15 enabled on CN6 | E9 | closed |
| | IRQ15 disabled | E9 | open |
| » | IRQ14 enabled on CN5 | E10 | closed |
| | IRQ14 disabled | E10 | open |
| PORT ADDRESS CONFIGURATION |
| HD Port 1 (CN5) | HD Port 2 (CN6) | SW1/switch 4 | SW1/switch 5 | SW1/switch 6 |
| Disabled | Disabled | off | off | off |
| 1F0-1F7h | Disabled | off | on | off |
| 170-177h | Disabled | off | on | on |
| 1F0-1F7h | 170-177h | on | on | off |
| BIOS ADDRESS |
| Address | SW1/switch 1 | SW1/switch 2 | SW1/switch 3 |
| | Disabled | off | off | off |
| » | C800h / 8K | on | off | off |
| | CA00h / 8K | off | on | off |
| | C800h / 16K | on | on | off |
| | CC00h / 8K | on | off | on |
| | CE00h / 8K | off | on | on |
| | CC00h / 16K | on | on | on |
