SILICON VALLEY COMPUTER, INC. ADP70LB
Data bus:16-bit, ISA
Size:Half-length, full-height card
Hard drive supported:Two IDE (AT) Interface drives
Floppy drives supported:Two 360KB, 720KB, 1.2MB, or 1.44MB drives

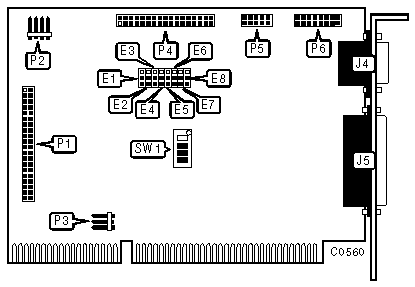

CONNECTIONS
FunctionLocation
40-pin IDE (AT) interface connectorP1
4-pin connector - drive active LEDP2
5-pin connector - DC powerP3
34-pin control cable connector - floppy driveP4
10-pin serial port 2 (COM2/4) - internalP5
16-pin game port - internalP6
10-pin serial port 1 (COM1/3) - externalJ4
25-pin parallel port (LPT1/2) - externalJ5
USER CONFIGURABLE SETTINGS
FunctionLocationSetting
»Floppy drive enabledE7Pins 2 & 3 closed
 Floppy drive disabledE7Pins 1 & 2 closed
»Hard drive enabledE8Pins 2 & 3 closed
 Hard drive disabledE8Pins 1 & 2 closed
»Factory configured - do not alterSW1/1N/A
SERIAL PORT 1 (J4) CONFIGURATION
COM/AddressE1E2
»COM1/3E8hPins 2 & 3 closedPins 2 & 3 closed
 COM3/3F8hPins 2 & 3 closedPins 1 & 2 closed
 DisabledPins 1 & 2 closedN/A
SERIAL PORT 2 (P5) CONFIGURATION
COM/AddressE3E4
»COM2/2F8hPins 2 & 3 closedPins 2 & 3 closed
 COM4/2E8hPins 2 & 3 closedPins 1 & 2 closed
 DisabledPins 1 & 2 closedN/A
PARALLEL PORT (J5) CONFIGURATION
LPT/AddressE5E6
»LPT2/378hPins 2 & 3 closedPins 2 & 3 closed
 LPT3/278hPins 2 & 3 closedPins 1 & 2 closed
 DisabledPins 1 & 2 closedN/A
ONBOARD BIOS
AddressSW1/2SW1/3SW1/4
»DisabledOffOffOff
 D8000h - D9FFFhOnOnOn
 D4000h - D5FFFhOnOnOff
 D2000h - D3FFFhOnOffOn
 D0000h - D1FFFhOnOffOff
 CC000h - CDFFFhOffOnOn
 CA000h - CBFFFhOffOnOff
 C8000h - C9FFFhOffOffOn
Note: (1) HDD type number must be set to 1 if ADP70LB BIOS is used. (2) Manufacturer recommends using system BIOS if possible.
