VITEX SUPER I/O
| Card Type | Hard drive controller card |
| Hard Drives supported | Two IDE (AT) drives |
| Floppy drives supported | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
| Data Bus | 16-bit ISA |
| Card Size | Half-length, full-height card |

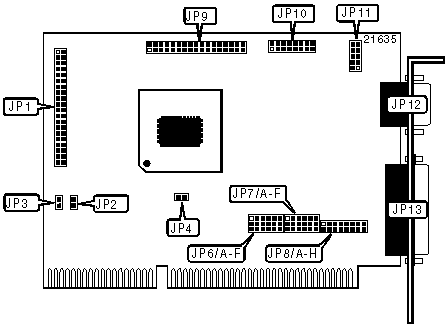

| CONNECTIONS |
| Function | Location | Function | Location |
| 40-pin primary IDE(AT) connector | JP1 | 10-pin serial port 1 - internal | JP11 |
| 2-pin connector - drive active LED | JP2 | 9-pin serial port 1 - external | JP12 |
| 34-pin cable connector - floppy drive | JP9 | 25-pin parallel port - external | JP13 |
| 16-pin game port | JP10 | | |
| USER CONFIGURABLE SETTINGS |
| Function | Label | Position |
| » | Floppy drive order is normal (A:, B:) | JP7/C | Pins 2 & 3 closed |
| | Floppy drive order is reversed (B:, A:) | JP7/C | Pins 1 & 2 closed |
| » | IDE(AT) interface enabled | JP7/D | Pins 2 & 3 closed |
| | IDE(AT) interface disabled | JP7/D | Pins 1 & 2 closed |
| » | Floppy drive interface enabled | JP7/E | Pins 2 & 3 closed |
| | Floppy drive interface disabled | JP7/E | Pins 1 & 2 closed |
| » | PC/XT | JP7/F | Pins 1 & 2 closed |
| | PC/AT | JP7/F | Pins 2 & 3 closed |
| SINGLE/DUAL HARD DRIVE SELECTION |
| Setting | Label | Position |
| Single hard drive | JP3 | Closed |
| Dual hard drive | JP3 | Open |
| PARALLEL PORT ADDRESS SELECTION |
| Setting | JP6/D | JP6/E |
| LPT1 (378h) | Pins 2 & 3 closed | Pins 2 & 3 closed |
| LPT2 (278h) | Pins 2 & 3 closed | Pins 1 & 2 closed |
| LPT3 (3BCh) | Pins 1 & 2 closed | Pins 2 & 3 closed |
| Disabled | Pins 1 & 2 closed | Pins 1 & 2 closed |
| SERIAL PORT 1 ADDRESS SELECTION |
| Setting | JP6/A | JP6/B |
| COM1 (3F8h) | Pins 2 & 3 closed | Pins 1 & 2 closed |
| COM3 (3E8h) | Pins 1 & 2 closed | Pins 2 & 3 closed |
| COM4 (2E8h) | Pins 2 & 3 closed | Pins 2 & 3 closed |
| Disabled | Pins 1 & 2 closed | Pins 1 & 2 closed |
| SERIAL PORT 2 ADDRESS SELECTION |
| Setting | JP6/C | JP6/F |
| COM2 (2F8h) | Pins 2 & 3 closed | Pins 1 & 2 closed |
| COM3 (3E8h) | Pins 2 & 3 closed | Pins 2 & 3 closed |
| COM4 (2E8h) | Pins 1 & 2 closed | Pins 2 & 3 closed |
| Disabled | Pins 1 & 2 closed | Pins 1 & 2 closed |
| HARD DISK ADDRESS SELECTION |
| Address | Label | Position |
| 3F6, 3F7, 1F0-1F7 | JP7/A | Pins 1 & 2 closed |
| 376, 377, 170-177 | JP7/A | Pins 2 & 3 closed |
| FLOPPY DISK ADDRESS SELECTION |
| Address | Label | Position |
| 3F0-3F7 | JP7/B | Pins 1 & 2 closed |
| 370-377 | JP7/B | Pins 2 & 3 closed |
| SERIAL PORT 1 INTERRUPT SELECTION |
| IRQ | JP8/A | JP8/B | JP8/C |
| IRQ3 | Open | Closed | Open |
| IRQ4 | Closed | Open | Open |
| IRQ5 | Open | Open | Closed |
| SERIAL PORT 2 INTERRUPT SELECTION |
| IRQ | JP8/D | JP8/E | JP8/F |
| IRQ3 | Closed | Open | Open |
| IRQ4 | Open | Closed | Open |
| IRQ5 | Open | Open | Closed |
| PARALLEL PORT INTERRUPT SELECTION |
| IRQ | JP8/G | JP8/H |
| IRQ5 | Open | Closed |
| IRQ7 | Closed | Open |
| PARALLEL PORT MODE SELECTION |
| Setting | Label | Position |
| Uni-directional | JP4 | Closed |
| Bi-Directional (EPP/ECP) | JP4 | Open |
