ADAPTEC, INC. AHA-3940
| Card Type | Hard drive controller card |
| Hard Drives supported | Up to 14 SCSI devices |
| Floppy drives supported | None |
| Data Bus | 32-bit PCI |
| Card Size | Half-length, full-height card |

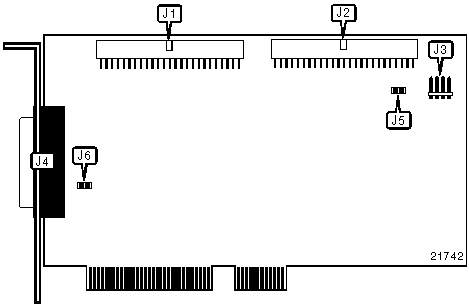

| CONNECTIONS |
| Function | Location | Function | Location |
| 50-pin SCSI connector channel A - internal | J1 | 4-pin LED connector | J3 |
| 50-pin SCSI connector channel B - internal | J2 | 50-pin SCSI connector channel A - external | J4 |
| USER CONFIGURABLE SETTINGS |
| Function | Label | Position |
| » | Auto termination channel A enabled | J6 | Closed |
| | Auto termination channel A disabled | J6 | Open |
| » | Auto termination channel B enabled | J5 | Closed |
| | Auto termination channel B disabled | J5 | Open |
